Basic components
1. New type PC intellectual ultrasonic generator;
2. 20KHz ultrasonic transducer unit;
3. Bottom mould fixed suspension structure;
4. Single-motor speed adjustment system;
5. Manual roller lifting system;
6. Double-barreled framework and heavy support board.
Characteristics
1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;
2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), meets the welding requirements of different materials andthicknesses;
3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology;
4. Variety of roller patterns, other roller designs available according to customer requirements;
5. Four times faster than sewing machines, minimal operator training required.
Functions
1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting,so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.
Suitable material
All kinds of artificial leather and fabric, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyster, ABC, PC, PVC, PE, PP, PS, etc.
Application
Apply to lace clothing, ribbon, decoration products, handkerchief, tablecloth, curtain, bedspread,
pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask,
non-woven fabric bags and so on.
Technical specification

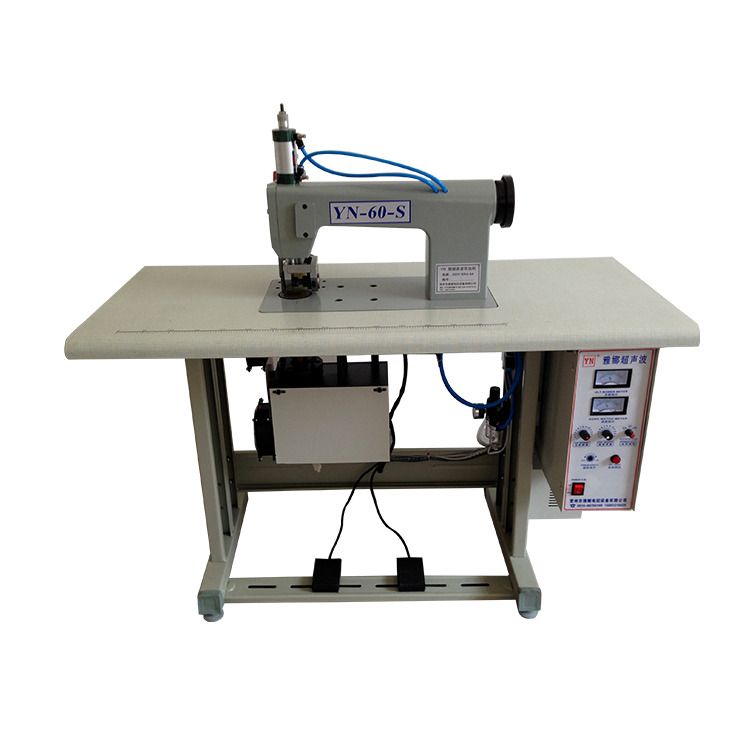

| Commodity | Ultrasonic lace sewing machine |
| Specification | YN-60-S |
| Output(W) | 1500-2500W |
| Frequency(KHz) | 20KHz |
| Voltage(V) | 220V |
| Mould size | Width:23-60mm; Diameter:50-60mm |
| Welding area (mm) | Ø60mm |
| Dimension(L×W×H) | 1200*600*1200mm |
| N.W (kg) | 90kg |
| Working speed | 0-20m/min |
For making non woven bag
Changzhou yana electronic equipment co., LTD., specializing in the production of computer intelligent ultrasonic lace machine, ultrasonic non-woven bag making machine and other accessories Ultrasonic and all kinds of garment machinery and special equip
The company to pursue science and technology leading, customer-orientated business philosophy, over the years to ultrasound equipment research and development work.Currently has a ultrasonic lace machine, pressure machine, spot welding machine, wireless sewing machine, bag making machine, ultrasonic sewing machine, ultrasonic waveHeat sealing machine and so on many kinds of utility equipment. Wherein, ultrasonic lace machine for its wide application scope, product characteristics, praised by many customers at home and abroadLove. Widely used in clothing pieces, napkins, tablecloths, curtains, window cover, craft jewelry, headdress hairpin, clothing accessories and other fieldsDomain.
Packing: Wooden case
Delivery: By sea, by air or by land
Packing and delivery is according to your choice.
