YBD Head Moved - D260A10 Single Head Quilting Making Machine For Quilts

1.0 Sets
MOQ
YBD Head Moved - D260A10 Single Head Quilting Making Machine For Quilts
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant
Showroom Location: Turkey, Brazil, India, Mexico, Russia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Max Sewing Speed: 2800rpm
Max Sewing Thickness: ≤60mm
Number Of Head: Single Head
Moving Style: Head Moved
Voltage: AC220/380V;2&3Phases;50Hz
Power: 5kw
Dimension(L*W*H): L6230*W3750*H1600(mm)
Weight: 2000kg-3000kg
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support
Series Number:: D260A10
Working Area:: 2400mm*2600mm
Max Speed:: 2800rpm
Stitch Distance:: 2~6mm
Sewing Thickness:: ≤60mm
Gross Power:: 5KW
Rate Voltage:: 220V,50HZ
Machine Size:: L6230*W3750*H1600(mm)
Name: Quilts Making Machine
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Turkey, Brazil, India, Russia
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: Fashion style quilting making machine for clothes china ; export standard packing
Supply Ability: 100 Set/Sets per Month quilting machine china
Product Description

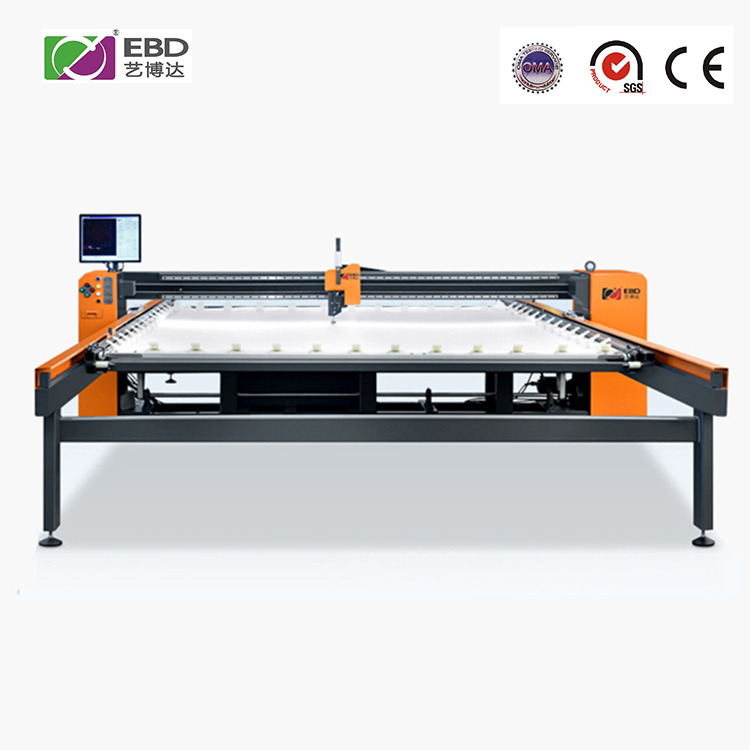

YBD -D260A10 Single head quilting making machine for quilts

Series Number: D260A10
Working Area: 2400mm*2600mm
Max Speed: 2800rpm
Stitch Distance: 2~6mm
Sewing Thickness: ≤60mm
Gross Power: 5KW
Rate Voltage: 220V,50HZ
Machine Size: L6230*W3750*H1600(mm)

  1. .Machine body frame made with thick square tube welding structure,simple but with high strength, good rigidity and reliablestability.
  2. .Driven by 4 servo motors to assure precise transmission and low failure-rate. Max 2800 rpm, with 1500-2000 rpm in continuous production. Stitches between2mm-6mm are adjustable.
  3. .Using movable high speed cantilever sewing head, jumbo rotary hook andadjustable press foot, to meet diversified sewing thickness.
  4. .Equipped with break detector, it will automatically stop when thread breaks at broken spot, and sewing will continuous after threading again. Return
    patch-up at any spot is applicable.
  5. .With simple operation system and straightaway XP editing software, easy to program and edit patterns. Real-time data such as pattern effects, sewing
    simulate movement and output etc can be shown on screen.

FAQ

Q1: How many days about delivery time?
For stock machine: 3-5 working days
non-stock machine: 30-35days from date receipt of deposit

Q2: What's payment method?
T/T, Irrevocable Sight L/C, Western Union are availble.

Q3: What's normal payment term?
FOB Shenzhen usually, C&F, CIF are available.

Q4: Which sea port nearest?
Shenzhen Port is nearest. Any port of China is ok.

Q5.Can you provide OEM service?
We can provide OEM service. It will depend on your requests; your logo will be customized on our product.

Q6: Machine should match other machine to use?
Quilting machine usually mactch bobbin winder.
Quilting Embroidery Machine match fabric winder to use.

Q7: Will machine damage during transport?
No. Our machine with sea worthy packing, also we will fix machine tightly in container.

Q8: What infomation may contain in my inquiry?
Just share us some picture of quilt designs, and advise fabric width is enough.
Our engineering team will suggest suitable model for you.
