Printing Shops Factory Outlet 2.8m Large Format Sublimation Printing Machine Inkjet Printer

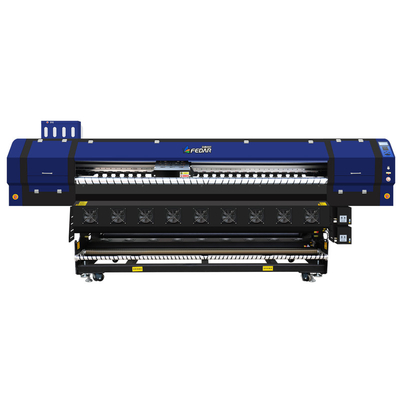

Fedar FD5268E Wide Format Sublimation Printing Machine

Characteristics of New style Fedar digital sublimation printing machine

• Servo Motor: LEADSHINE (Famous Brand in China)
• Guide Line: THK (Famous Brand in Japan)
• Cartridge: Original Import (Clean, Pump and Moisturize Automatically)
• Main Board: Design and Produced by ourselves, it is stability and 15Months Warranty time
• Ink Supply System: Bulk Ink Continues Supply System.

Application (Heat Transfer Paper Printing)

Technical Data

1. Epson Original I3200-A1 Head

Adopt Eight EPSON I3200-A1 print head,as your request.price is different. variable dots technology 180 nozzles for every color, Max Resulution 3200 DPI. Max Printing Speed: 320 Sqm/H

Max Printing Width: 2600mm

1 Pass 320Sqm/H

2 Pass 180Sqm/H

2. Japan Original Import Cartridge (Clean, Pump Ink and Moisturize)

The capping station is imported from overseas to ensure its reliability and permanence. It can protect and clean printhead efficiently and conveniently. It can clean printhead, moisturize and pump ink Full automatically. Keep ink supply system work fluently.

3. Printing Carriage

The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

4. Ink Tank

FD5268E 2.6m Large Format Sublimation Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

5. Intelligent Ink Shortage Alarm System

Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

6. Stable Fedar Self-printing System

The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

7. Inflatable Shaft Retractable System

No need to use other accessories to fix the printing medium during operation, and use the pressure of air to automatically adjust. Make the force even and the paper running more smooth. The feeding and taking-up system has the characteristics of large bearing weight, long service life, the force of paper feeding and taking-up is even, short inflation and deflation operation time.

8. Intelligent Dry System

FD5268E 2.6m Large Format Sublimation Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.
