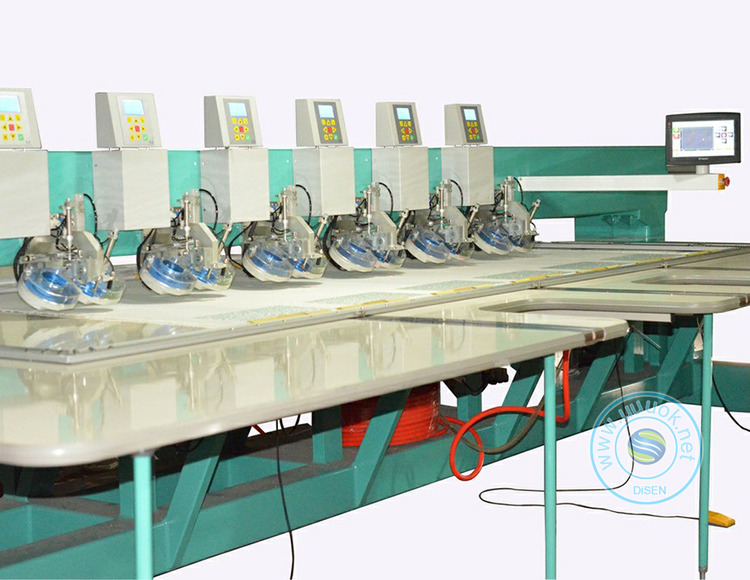

Automatic computer rhinestone hot fix mixed embroidery machine
According to the computer pattern designed by the customer, drills are automatically taken, placed, and glued.
To complete the needs of personalized and small batch production, it is most suitable for the processing needs of front-shop and back-factory!
Fully Automatic Computerized Embroidery Point Drilling Machine
Embroidery: 9 stitches embroidery 1000 rpm
Optional: simple cording embroidery, double sequin embroidery
Point drill: 2 colors
Adapt to drill size: 2mm-5mm
Speed: 100 pcs/min
Hot drilling work size: 2mm-5mm
Hot diamond grade: Country B, Country A, Country A double-sided, DMC, Middle East diamond, Czech diamond, Austrian diamond
Minimum hot drilling distance: 0.1mm spacing
Maximum hot drilling color options: 2 colors
Working speed: 220-250 pcs/min
Flower format: DST
Standard working area: custom size
Applicable materials: velvet, denim, knitted fabric, PU leather, genuine leather, other synthetic leather.
Applications: shoes, clothing, handbags, leather, accessories, hats.
Optional specifications: 1 head with 2 plates, 1 head with 4 plates, 2 heads with 2 plates, 4 heads with 2 plates, 6 heads with 2 plates
The automatic hot-stamping machine uses ultrasonic waves to fix hot-stamping on the material immediately. It is suitable for velvet, denim, knitted fabric, Pu leather, genuine leather and other synthetic leather. It is widely used in clothing, T-shirts, embroidered patterns, leather, handbags, etc. Hats and other accessories.
Working principle: Convert 220V/50Hz alternating current to 35KHZ alternating current through the electronic circuit system of this machine, and then convert it into mechanical energy vibration through the transducer. First press the diamond on the ultrasonic welding head, and then the welding head produces mechanical energy vibration. After the diamond pressed on the top undergoes the mechanical vibration below, the hot melt glue on the top is melted to make the diamond stick to the cloth or leather.
The automatic hot drilling machine uses ultrasonic waves to fix the hot drilling on the material immediately.
The processing efficiency is high, 220-250 grains per minute, the double-counting drilling machine can complete the point drilling of two colors of diamonds at the same time.
Acrylic shield is added to the bead plate to prevent the diamonds from jumping out of the bead plate and scattered.ultrasonic single head 2 disc rhinestone hotfix motif making machine automated rhinestone machine on fabric clothes.
Customize other sizes and related products
