Home /Products/3D Embroidery Machine/Cap and Tubular Embroidery Machine High speed for T-shirt and ready garments ,High quality multiple function

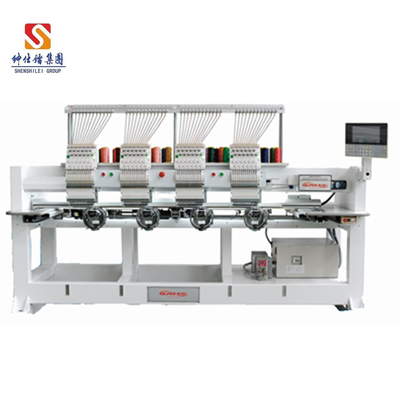

Cap and Tubular Embroidery Machine High speed for T-shirt and ready garments ,High quality multiple function

$3,000.00 - $12,000.00/Sets
Price
Cap and Tubular Embroidery Machine High speed for T-shirt and ready garments ,High quality multiple function
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Manufacturing Plant, Printing Shops, Advertising Company, Embroidery Factory
Condition: New
Type: Cap Embroidery Machine
Operation: Computerized
Overall Dimensions: 3000*1500*1500 Mm
Warranty: 1 Year
Worktable Size: 400*450 Mm
Head Interval: 400 Mm
Embroidery Area: 400*450 Mm
After-sales Service Provided: Online Support, Video Technical Support, Field Maintenance And Repair Service
Computer: DaHao A18 / 528
Motor: Dahao Servo Motor
Function: Cap/T-shirt/Garments / Logo
Maximum Speed: 1200 RPM
Power Source: 220 V/50 Hz
Language: 12 Languages
Head: High Speed
Color: White / Green
Table: Wooden
Body Design: Cap Model
Port: CHINA NINGBO PORT
Basic Infomation
Certification: CE / ISO
Payment & Shipping Terms
Packaging Details: fix size wooden package / carton package
Supply Ability: 200 Set/Sets per Month
Product Description
Product Description

Product Application

SSL High Speed Flat Embroidery Machine is Suitable for garments fabric and logo embroidery .

SPECIFICATIONS FOR CAP/TUBULAR MODEL EMBROIDERY MACHINE

Control System
Computer
Dahao
A18 / 528 / D56
Motor
Dahao
servo motors
Power
220 v
50 HZ

Main specification
Head
9/12/15needles
jump solenoid / motor
Speed
1000 RPM
Max 1200 RPM
Area
400 mm
cap 270 degree
flat 400*450 mm

Option Parts
Device
sequins
cording
Rotary Hook Size
High speed 1.0
Jumbo 1.6
Needle Size
#11 / 12 / 14
Thick #16 / 18

Main Features

1.Computerized embroidery for cap&garments and home textile products.

2.Machine can be used for flat embroidery also ,suitable for small size and logo design,special for customization production.

3.Easy to input the design to machine from designing software as Wilcome /TAJIMA/etc which major used worldwide .

4.Device option：single sequins/twin sequins/4 sequins/simple cording/etc .



Certifications
Detailed Images

Machine Parts

1.Special structure design for switching flat to cap&T-shirt etc embroidery easily.



2.Equipped with DAHAO control system ,easy to operate with large designs memory

REGULAR CONFIGURATION :


1.Auto trimmer system ,automatic color changing,support design preview and make-up embroidery and other function .


2.Max flat speed 1200RPM,cap 1000 RPM ,max cap frame rotation range 270°


3.Customized model from single head /double heads to 4/6/8/10 heads,with frame body and wheel design for easy moving .


Machine Photo


1. All parts follow high speed model standard

2. Top quality control system by company

3.Well Testing before delivery


Fitting process :


1. More than 15 years experience for manufacturing

2.All the process based on international standard

3.Fast and high-efficient flow production system


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
Depand on machine model

overlap is avaibale



Packaging Details
The normal package is vaccum package

The wooden package is also avaibale for small machine according to customers special request.

Iron support / frames is provided for over lap loading .
